1-Nonwoven Binding Tapes /WD-1

Composition:

100% Polyester fiber, adhesive.

Application:

Be made of 100% polyester, dipping in chemical bond and drying. The tensile strength is excellent as the fiber be carded enough. It be used for more tensile strength and more air-permeable fabric. Be used for making the electrical insulating materials, Semi-conductive tapes and Water-blocking tapes. It’s a kind of filter fabric. Material selection is based on the strength and thickness requirement for the particular application.

Technical Data

Mass per unit area : From 20g/m2 to 80g/m2

Thickness : From 0.14mm to 030mm

Tensile strength : From 15N/cm to 60 N/cm

Elongation : 10% to 12%

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

Technical Data Sheet, Click here to download !

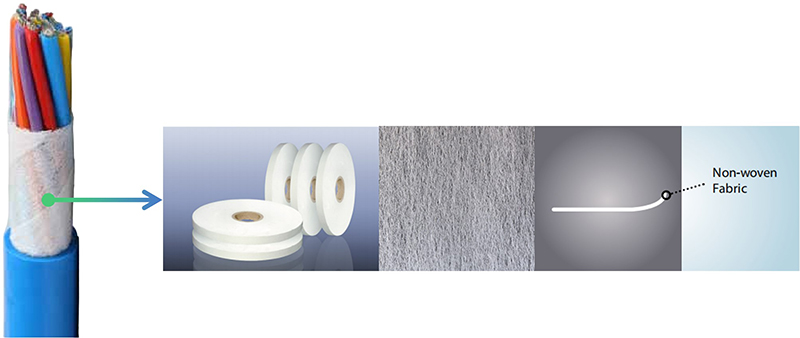

2-Nonwoven Binding Tapes /WD-4

Composition:

100% Polyester fiber, adhesive.

Application:

Be made of 100% polyester, dipping in chemical bond and drying. The tensile strength is excellent as the fiber be carded enough. It be used for more tensile strength and more air-permeable fabric. Be used for making the electrical insulating materials, Semi-conductive tapes and Water-blocking tapes. It’s a kind of filter fabric. Material selection is based on the strength and thickness requirement for the particular application.

Technical Data

Mass per unit area : From 20g/m2 to 80g/m2

Thickness : From 0.07mm to.019mm

Tensile strength : From 15N/cm to 60 N/cm

Elongation : 10% to 12%

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

Technical Data Sheet, Click here to download !

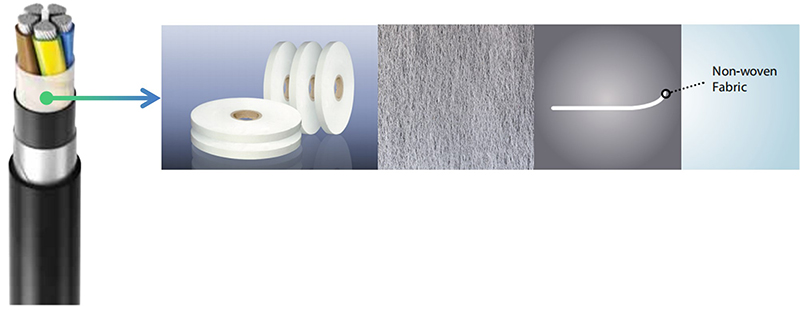

3-Nonwoven Binding Tapes /WD-2,WD-3

Composition:

100% Polyester fiber, adhesive.

Application:

General binding, bedding and separating in wire and cables. They are high tensile strength, low flexibility, no causticity. They are so strength that nice economic capability.

Technical Data

Mass per unit area : 70g/m2 ; 75g/m2

Thickness : 0.12mm ; 019mm ; 026mm

Tensile strength : 53N/cm ; 60 N/cm

Elongation : 9%

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

Technical Data Sheet, Click here to download !
