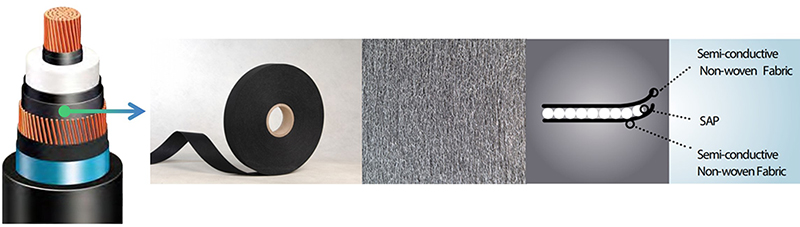

1- Semi-conductive Water-blocking Tapes SCW

Composition:

Polyester non-woven fabric, super absorbent resin, semi-conductive adhesive.

Application:

Be used under neutral screen wires and tapes between high-voltage cable components for binding, water-blocking and shielding.

Technical Data

Mass per unit area : From 120g/m2 to 240g/m2

Thickness : From 0.30mm to.080mm

Tensile strength : From 30N/cm to 70 N/cm

Elongation : 10% to 12%

Swelling speed : ≥8mm/1min

Swelling height : ≥12mm/min

Surface resistance : ≤1500 Ohm/□

Volume resistance : ≤50000 Ohm.cm

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

Technical Data Sheet, Click here to download !

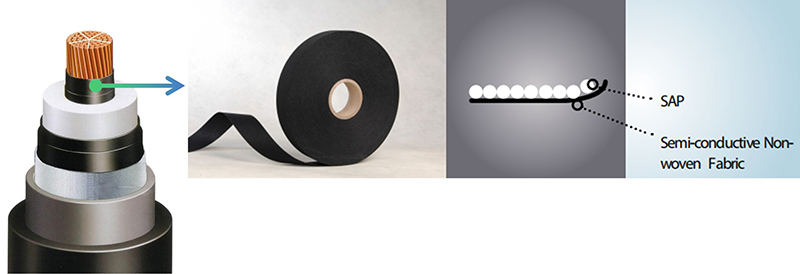

2-Single-side Semi-conductive Nylon Tapes SCWS

Composition:

Polyester non-woven fabric, super absorbent resin, semi-conductive adhesive.

Application:

Be used under neutral screen wires and tapes between high-voltage cable components for binding, water-blocking and shielding.

Technical Data

Mass per unit area : 115g/m2

Thickness : 0.30mm

Tensile strength : ≥40 N/cm

Elongation : 12%

Swelling speed : ≥8mm/1min

Swelling height : ≥12mm/min

Surface resistance : ≤1500 Ohm/□

Volume resistance : ≤500000 Ohm.cm

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

Technical Data Sheet, Click here to download !

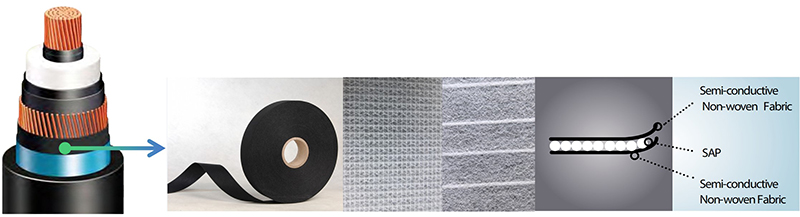

3- Semi-conductive Water-blocking Tapes for Marine cable SCWM

Composition:

Polyester non-woven fabric, super absorbent resin, semi-conductive adhesive.

Application:

Be used under neutral screen wires and tapes between high-voltage cable components for binding, water-blocking and shielding.

Technical Data

*Note: Swelling tested in 3.5% Nacl Water

Mass per unit area : From 140g/m2 to 280g/m2

Thickness : From 0.30mm to.1.00mm

Tensile strength : From 30N/cm to 80 N/cm

Elongation : 10%

Swelling speed : ≥2mm/1min

Swelling height : ≥3mm/min

Surface resistance : ≤1500 Ohm/□

Volume resistance : ≤50000 Ohm.cm

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

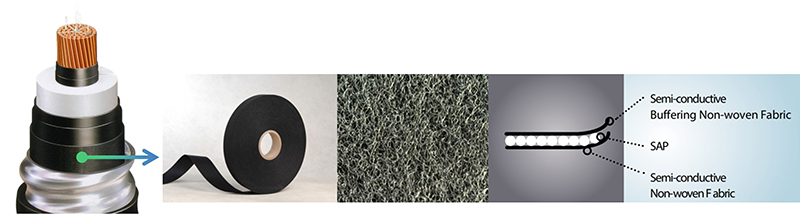

4-Semi-conductive Buffer Water-blocking Tapes, SCWB

Composition:

Polyester non-woven fabric, super absorbent resin, polyester bulky fabric, adhesive.

Application:

Applications where a robust tape is required and be used for water blocking, shielding and buffering in neutral screen wire between cable components in high voltage power cable.

Technical Data

Mass per unit area : From 270g/m2 to 320g/m2

Thickness : 1.50mm ; 2.00mm

Tensile strength : ≥40 N/cm

Elongation : 12%

Swelling speed : ≥8mm/1min

Swelling height : ≥12mm/min

Surface resistance : ≤1500 Ohm/□

Volume resistance : ≤500000 Ohm.cm

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

Technical Data Sheet, Click here to download !
