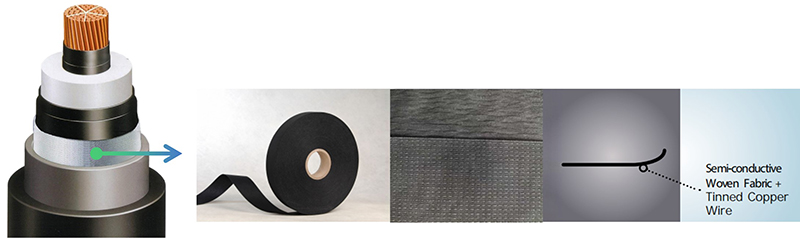

1- Semi-conductive Copper Wire Woven Tapes (SCCU)

Composition:

Polyester, cotton or rayon fabric ,tinned copper wire, carbon and adhesive.

Application:

Shielding, binding and filling on the shielding layer in the cable.

Technical Data

Mass per unit area : From 300g/m2 to 380g/m2

Thickness : From 0.40mm to 0.50mm

Tensile strength (MD) : From 40N/cm to 50N/cm

Elongation (MD) : 5%

Surface Resistance : ≤50Ω

Volume Resistance : 0

2- Semi-conductive Copper Wire Single-side Water-blocking Tapes (SCCS)

Composition:

Polyester, cotton or rayon fabric ,tinned copper wire, carbon , SAP and adhesive.

Application:

Shielding, binding and filling on the shielding layer in the high-voltage cable.

Technical Data

Mass per unit area : From 300g/m2 to 360g/m2

Thickness : From 0.50mm to 0.60mm

Tensile strength (MD) : 50N/cm

Elongation (MD) : 10%

Surface Resistance : ≤300Ω

Volume Resistance : 30000Ω.cm

Swelling Speed : ≥4mm/1min

Swelling Height : ≥8mm/3min
