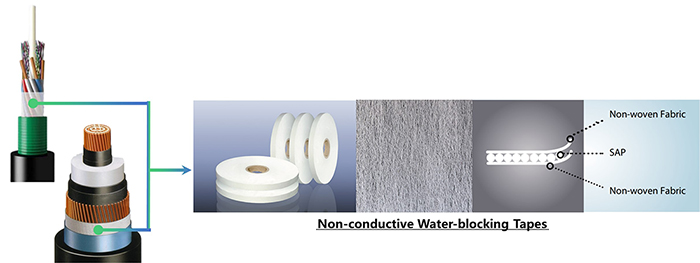

1- Water-blocking Tapes NCWD

Composition:

Polyester non-woven fabric, super absorbent resin, adhesive.

Application:

Be used for water-blocking in neutral screen cable, Optical fiber cable, Communication cable.

Technical Data

Mass per unit area : From 80g/m2 to 100g/m2

Thickness : From 0.20mm to.030mm

Tensile strength : From 30N/cm to 35 N/cm

Elongation : 10%

Swelling speed : ≥8mm/1min

Swelling height : ≥12mm/min

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

Technical Data Sheet, Click here to download !

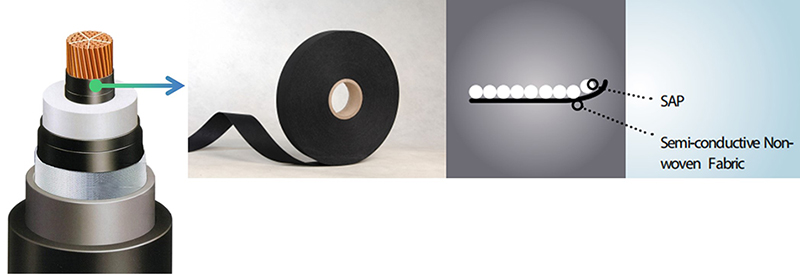

2- Single-side Water-blocking Tape NCWS

Composition:

Polyester non-woven fabric, super absorbent resin, adhesive.

Application:

Be used for water-blocking in neutral screen cable, Optical fiber cable, Communication cable.

Technical Data

Mass per unit area : From 70g/m2 to 90g/m2

Thickness : From 0.20mm to.030mm

Tensile strength : From 30N/cm to 50 N/cm

Elongation : 10%

Swelling speed : ≥5mm/1min

Swelling height : ≥8mm/min

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

Technical Data Sheet, Click here to download !

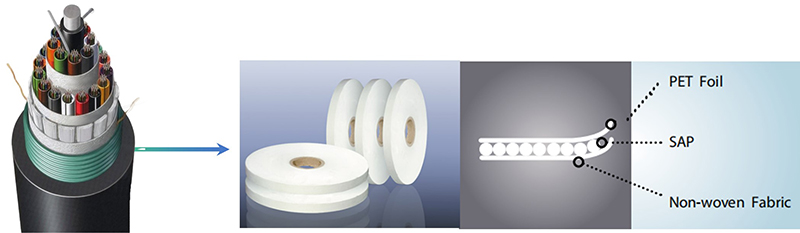

3- Laminated-film Water-blocking Tape NCWF

Composition:

Polyester non-woven fabric, polyester film, super absorbent resin, adhesive.

Application:

Be used for water-blocking in neutral screen cable, Optical fiber cable, Communication cable.

Technical Data

Mass per unit area : 110g/m2

Thickness : 0.25mm

Tensile strength : 45 N/cm

Elongation : 12%

Swelling speed : ≥8mm/1min

Swelling height : ≥12mm/min

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

Technical Data Sheet, Click here to download !

4- Water-blocking Tapes for Marine cable /NCWM

*Note: Swelling tested in 3.5% Nacl Water

Mass per unit area : 140g/m2

Thickness : 0.30mm

Tensile strength : 35 N/cm

Elongation : 10%

Swelling speed : ≥3mm/1min

Swelling height : ≥4mm/min

Short-term stability : 230 ℃

Long-term stability : 90 ℃

Moisture content : ≤1.5 %

Technical Data Sheet, Click here to download !
